Description
This kit includes the following:

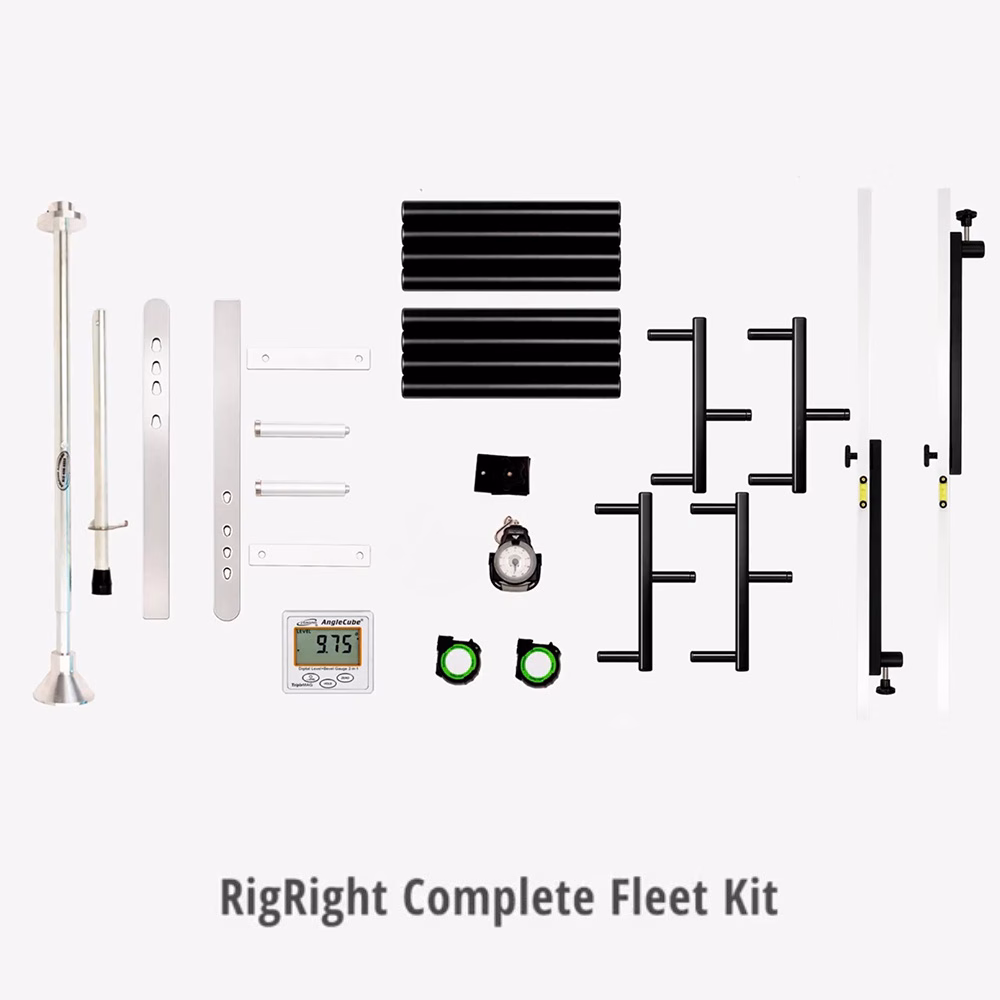

RigRight Heavy-Duty Truck Alignment System
The RigRight Heavy-Duty Truck Alignment System expands Axletrac’s proven Stud-Referenced Alignment System into a complete Class 8 truck alignment solution. By utilizing precise mechanical reference points established directly from the wheel studs, RigRight accurately measures thrust angle, scrub angle, steer axle toe, camber, and caster without the need for an alignment rack or recurring software subscriptions.
Includes:
- 2× RigRight Locking Squares
- 2× Magnetic Frame Standoffs
- 2× Framing Tape Measures
- Digital Inclinometer
- Alignment Worksheet Pad
- Web Calculator Access
- Instruction Manual
HDKPX2000 Kingpin Extension
The HDKPX2000 Kingpin Extension streamlines the axle alignment process by extending the kingpin measuring point for maximum precision. Designed with durability and accuracy in mind, this essential tool ensures precise axle-to-kingpin measurements, making it a must-have for technicians in repair shops and the trucking industry.
- Features: Adjustable Length: Extends from 38.5” to 52” in 1½” increments for versatile use.
- Spring-Loaded Cone: Holds the tool securely in place for stable measurements.
- Bullseye Level: Provides accurate plumb alignment in all directions for precision.
- Integrated Tape Hook: Easily connects to tape measures for seamless operation, making axle alignment measurement a one-person job.
- Interchange: WA1889, TLTOLWA1889, TOLWA1889, 91889, SPC98890

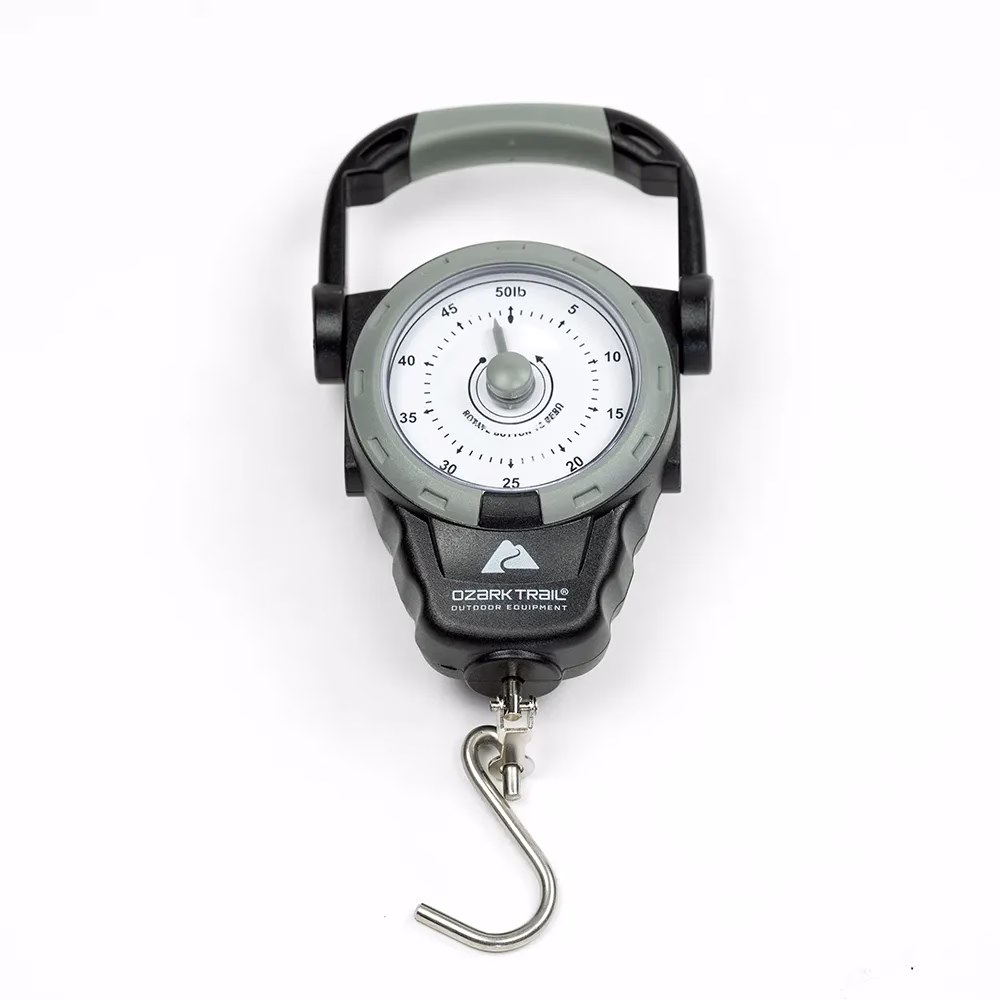

TM2000 Tension Meter
Consistency is key in alignment accuracy, and the TM2000 Tension Meter ensures equal pull pressure on your measuring tape. This user-friendly device eliminates guesswork, providing precise, repeatable measurements every time.
Handcrafted for durability, the most critical component is the handmade pinch plate apparatus, designed for long-lasting accuracy. While the tension meter is compatible with any scale—we include an affordable option to make setup easy.
Features: Adjustable grip knob, lightweight design
Purpose: Maintains 6-7 pounds of pull pressure for optimal measurement accuracy

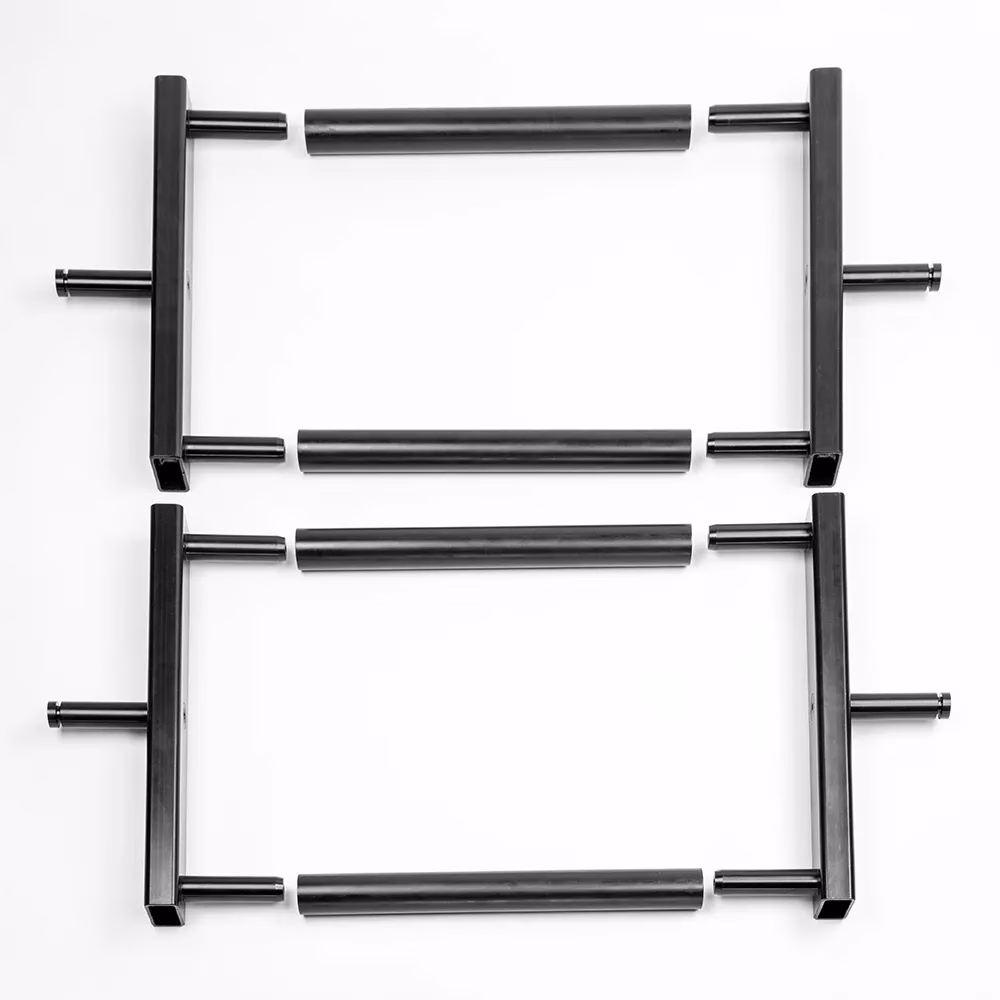

Axletrac AT1125-2 Dual Axle Alignment Tool Set (10-Stud)
Take alignment efficiency to the next level with the AT1125-2, designed for dual-axle alignments. Made from the same durable 7/32″ heavy wall steel tubing and precision 3/4″ solid steel pins, this kit delivers reliable, accurate alignments for two axles. Its patented design guarantees accurate centering of the extension tubes on the axle ends, with no exposed external threads to ensure lasting performance and durability.
- Includes: 8 extension tubes and 4 span bars
- Weight: 18 lbs per axle (36 lbs total)
- Compatibility: Hub piloted/unimount style hubs with a 10-stud, 285.75mm bolt circle
- Warranty: 3-year limited warranty against manufacturing defects
PB2000 Plumb Bars
The PB2000 Plumb Bar is a durable accessory designed to enhance the functionality of the Axle End Extender. Constructed from 16-gauge laser-cut steel, this straight bar features four fixed height settings, allowing it to extend measurements to the ground with precision. It’s ideal for applications where direct measurement from the axle is obstructed, such as pneumatic tankers, drop deck trailers, “low boys”, liquid tankers, flatbeds, and equipment with dolly racks and dolly mounts.
Additionally, the PB2000 is highly effective for livestock trailers, auto haulers, and refrigerated (reefer) trailers, where undercarriage supports, belly boxes, dolly mounts, or aerodynamic side skirts may interfere with standard alignment methods.
- What’s Included: 2 plumb bars
- Features: Four fixed height settings
Important: Steer axle toe, caster, and camber measurements require low-friction turn plates to allow the steer tires to rotate freely without loading suspension components. Turn plates are not included with RigRight and are sold separately. Many commercial turn plates are compatible, or a simple shop-made solution using two smooth plastic sheets with a thin layer of grease between them may also be used. See the instruction manual for complete details.
Please Note: The 50 ft. Starrett Tape Measure (TM50) is sold separately.
