Description
This kit includes the following:

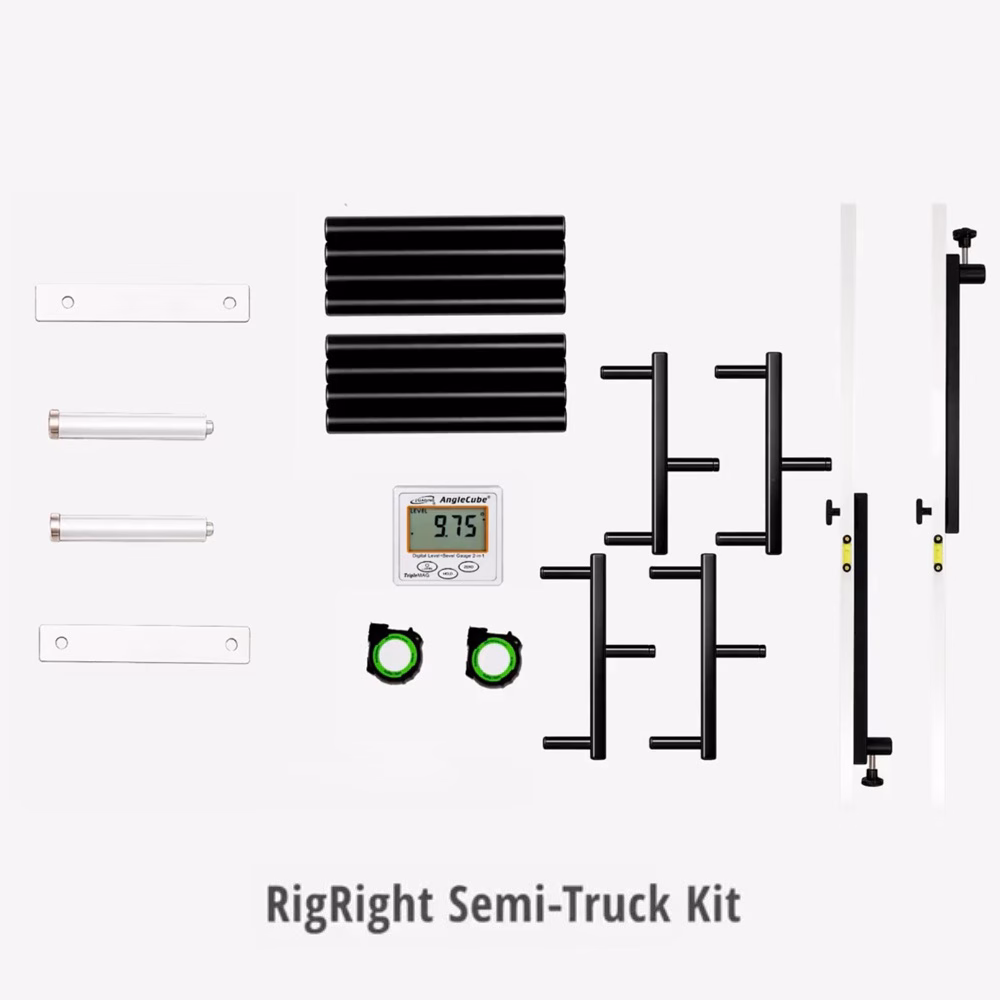

RigRight Heavy-Duty Truck Alignment System
The RigRight Heavy-Duty Truck Alignment System expands Axletrac’s proven Stud-Referenced Alignment System into a complete Class 8 truck alignment solution. By utilizing precise mechanical reference points established directly from the wheel studs, RigRight accurately measures thrust angle, scrub angle, steer axle toe, camber, and caster without the need for an alignment rack or recurring software subscriptions.

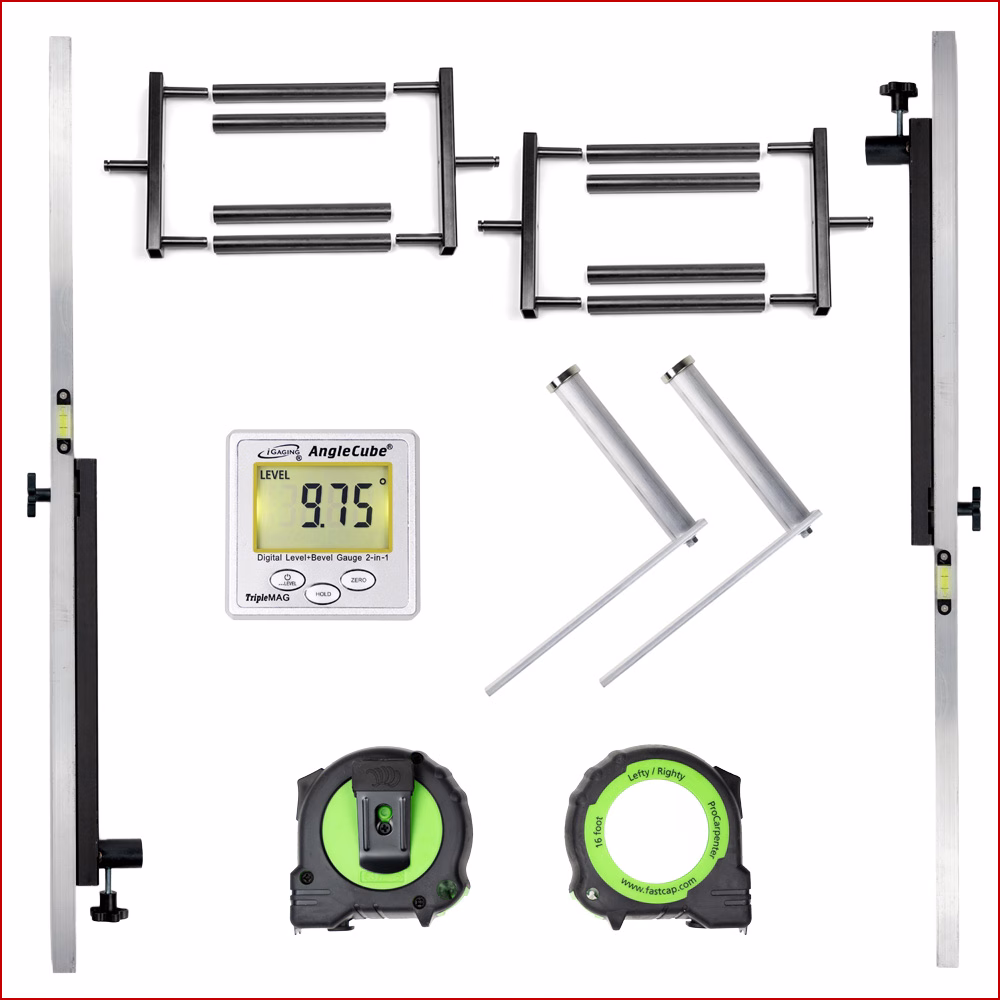

Includes:
- 2× RigRight Locking Squares
- 2× Magnetic Frame Standoffs
- 2× Framing Tape Measures
- Digital Inclinometer
- Alignment Worksheet Pad
- Web Calculator Access
- Instruction Manual
Axletrac AT1125-2 Dual Axle Alignment Tool Set (10-Stud)
Take alignment efficiency to the next level with the AT1125-2, designed for dual-axle alignments. Made from the same durable 7/32″ heavy wall steel tubing and precision 3/4″ solid steel pins, this kit delivers reliable, accurate alignments for two axles. Its patented design guarantees accurate centering of the extension tubes on the axle ends, with no exposed external threads to ensure lasting performance and durability.
- Includes: 8 extension tubes and 4 span bars
- Weight: 18 lbs per axle (36 lbs total)
- Compatibility: Hub piloted/unimount style hubs with a 10-stud, 285.75mm bolt circle
- Warranty: 3-year limited warranty against manufacturing defects
Important: Steer axle toe, caster, and camber measurements require low-friction turn plates to allow the steer tires to rotate freely without loading suspension components. Turn plates are not included with RigRight and are sold separately. Many commercial turn plates are compatible, or a simple shop-made solution using two smooth plastic sheets with a thin layer of grease between them may also be used. See the instruction manual for complete details.
